The demonstrated lead path produces a CRM row, Slack alert, and operation log. Its screenshots show the handoff. The separate policy lab below reproduces validation and route decisions across five labels using synthetic inputs and fixed classifier answers.
Partner disclosure. This guide includes a partner link to n8n Cloud. If you sign up through it, I may earn a commission at no extra cost to you.
The lead path is walked through in detail because it is enough to show the pattern. Support, invoice, spam, and review branches use the same structure: validate first, route second, act third, log last.
It is deciding what should happen, testing real emails, tuning labels, and making the workflow understandable enough for someone else to own.
Reproduce the routing policy
Local reference result: 19 synthetic fixtures and boundary assertions pass across lead, support, invoice, spam, and review decisions. The run records 17 local route-intent events; repeated messages and conflicting replays add no automatic action. Classifier answers are fixed stubs, so this measures policy behavior, not model accuracy.
Download the email-router policy lab v1.0.0 (ZIP): classifier output schema, fixtures, executable validator and router, expected routes, and the October 8, 2026 run log.
node run.mjs
lead + valid output → lead intent
confidence < 0.75 → review
spam without rule confirmation → review
invoice without declared PDF metadata → review
malformed JSON / unknown label / extra action → reviewThe lab rejects nonnumeric or out-of-range confidence, unknown labels, empty reasons, and extra output fields. Its spam route requires a rule flag and at least 0.90 confidence; that is a conservative fixture policy, not a calibrated probability. Invoice attachment metadata must be a valid collection, but metadata alone does not verify PDF contents or invoice safety.
Test scope: Node.js reference logic with a local sink, checked October 8, 2026. No mail is archived or sent; no ticket or CRM row is written. The replay map lasts one batch. This kit is not a complete n8n export and has not run inside n8n. Gmail, Groq, Slack, Drive, persistent deduplication, and model accuracy need separate integration and evaluation evidence.

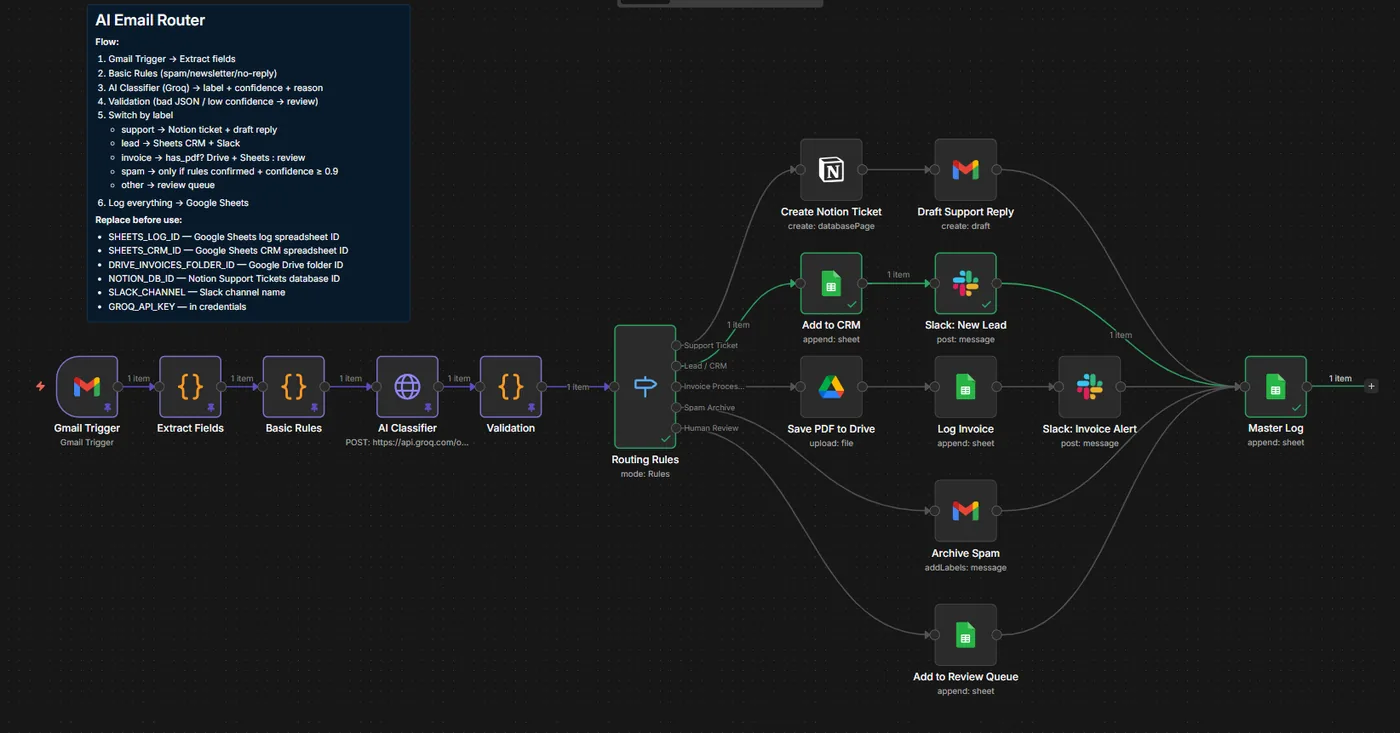

The full workflow map
The canvas has five possible routes. This page follows the lead route end to end, while keeping the other branches visible on the map.
1. Start with a controlled test email
Before building the rest of the workflow, send yourself one test email for the scenario you want to prove. In this case, the test email is a lead inquiry asking about n8n automation services and pricing.
The Gmail Trigger is then tested and pinned. That gives every next node a stable input while the workflow is being built, instead of waiting for Gmail to trigger again.

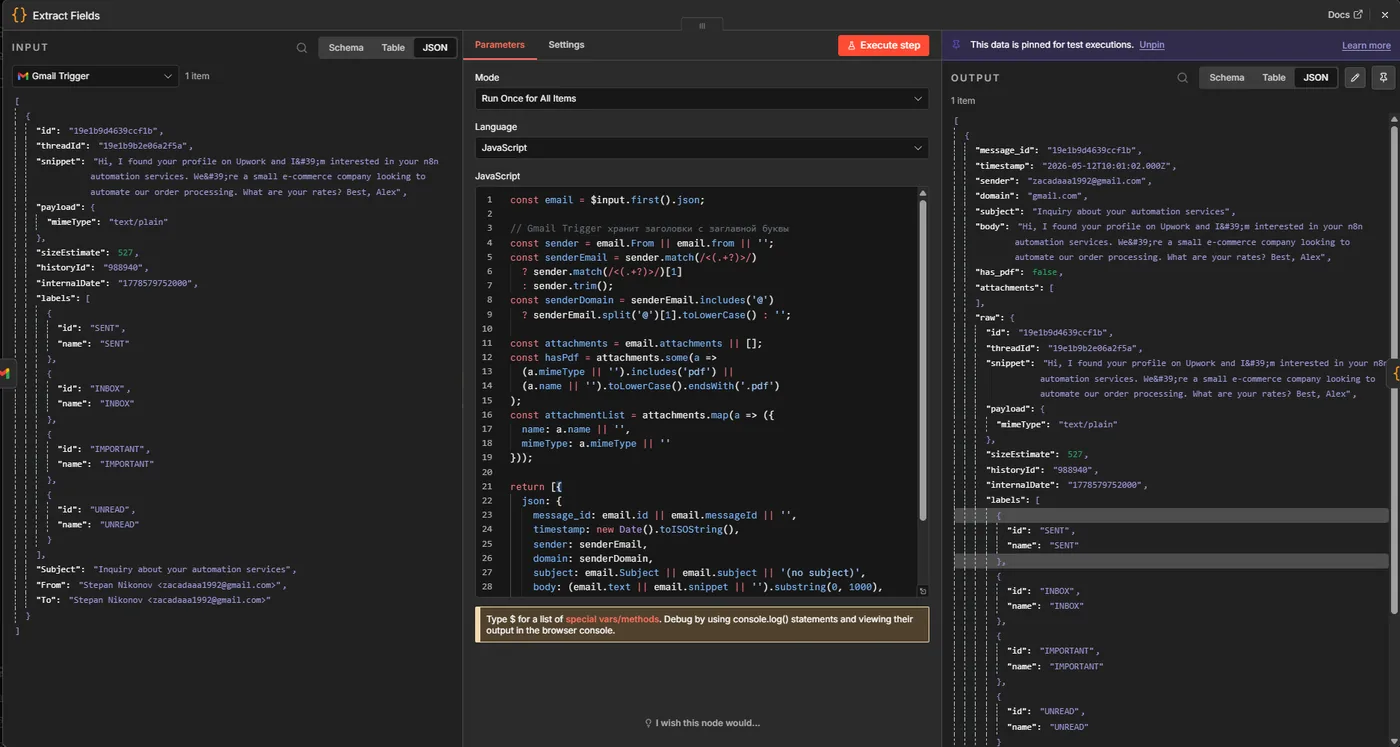

2. Normalize fields once
Gmail gives useful data, but it is not shaped for the rest of the workflow. The Extract Fields node turns raw Gmail output into clean top-level fields: sender, sender name, domain, subject, body snippet, attachment names, MIME types, and a PDF flag.

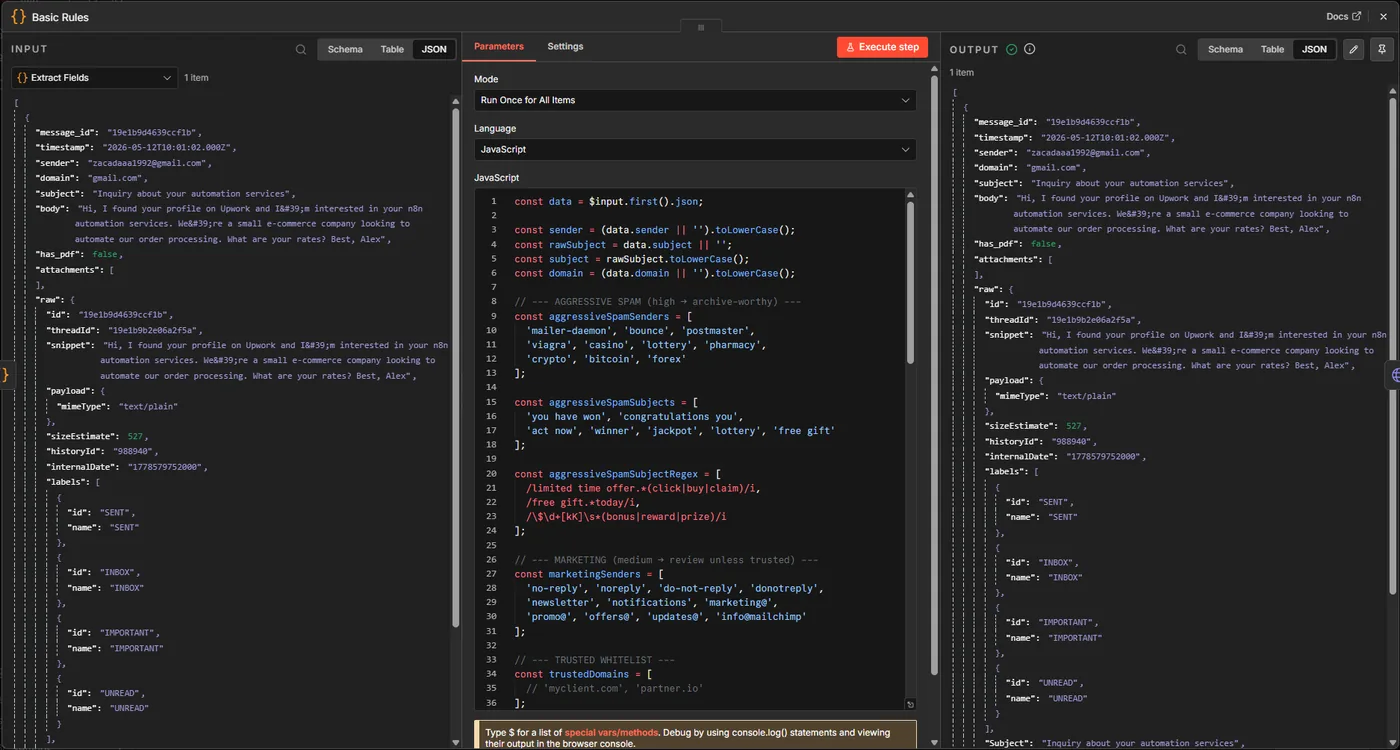

3. Add basic rule signals before AI
Basic Rules does not replace the classifier in this demo. It adds cheap, inspectable signals before the AI step: suspicious domains, no-reply senders, newsletter patterns, aggressive spam words, trusted domains, and attachment flags.
That makes the workflow easier to review. If the model later calls something spam, validation can check whether the rule-based signals agree before archiving anything.

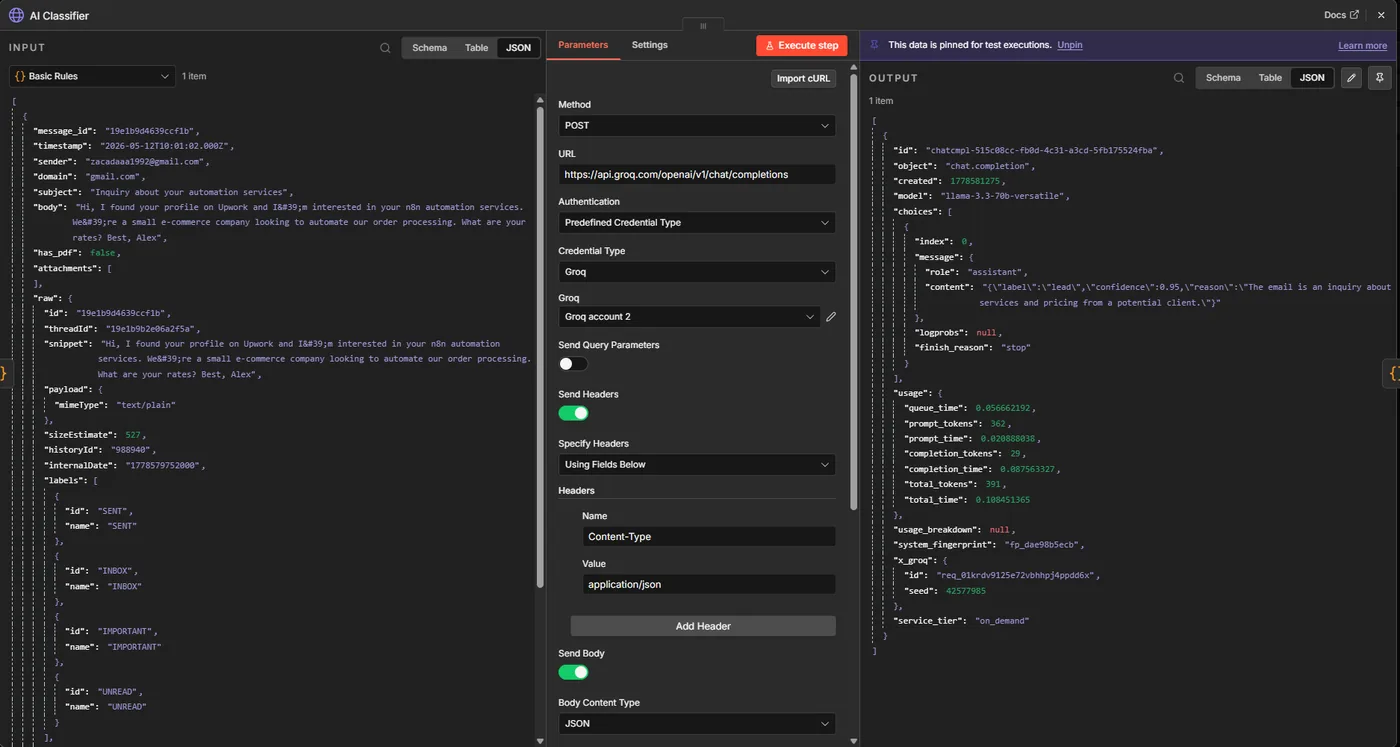

4. Keep the AI classifier small
The classifier is called through an HTTP Request to Groq. Its job is narrow: return one label, one confidence score, and one short reason.
For a volume budget, use the cost-per-1,000 email classifier calculation. It separates the model token bill from n8n execution capacity, retries, and human review.
{
"label": "lead",
"confidence": 0.95,
"reason": "The email is an inquiry about services and pricing from a potential client."
}
5. Validate before routing
AI output is not safe to trust directly. It can return markdown, broken JSON, a low confidence value, or a label that is semantically correct but operationally unsafe.
Invalid JSON goes to review. The workflow should not fall over because the model wrapped JSON in markdown.
Confidence below 0.75 goes to review. If the model is unsure, a human should see it.
Spam needs rule confirmation. A spam label alone is not enough to archive a message.
Invoice without PDF goes to review. The action depends on attachments, not only on the AI label.

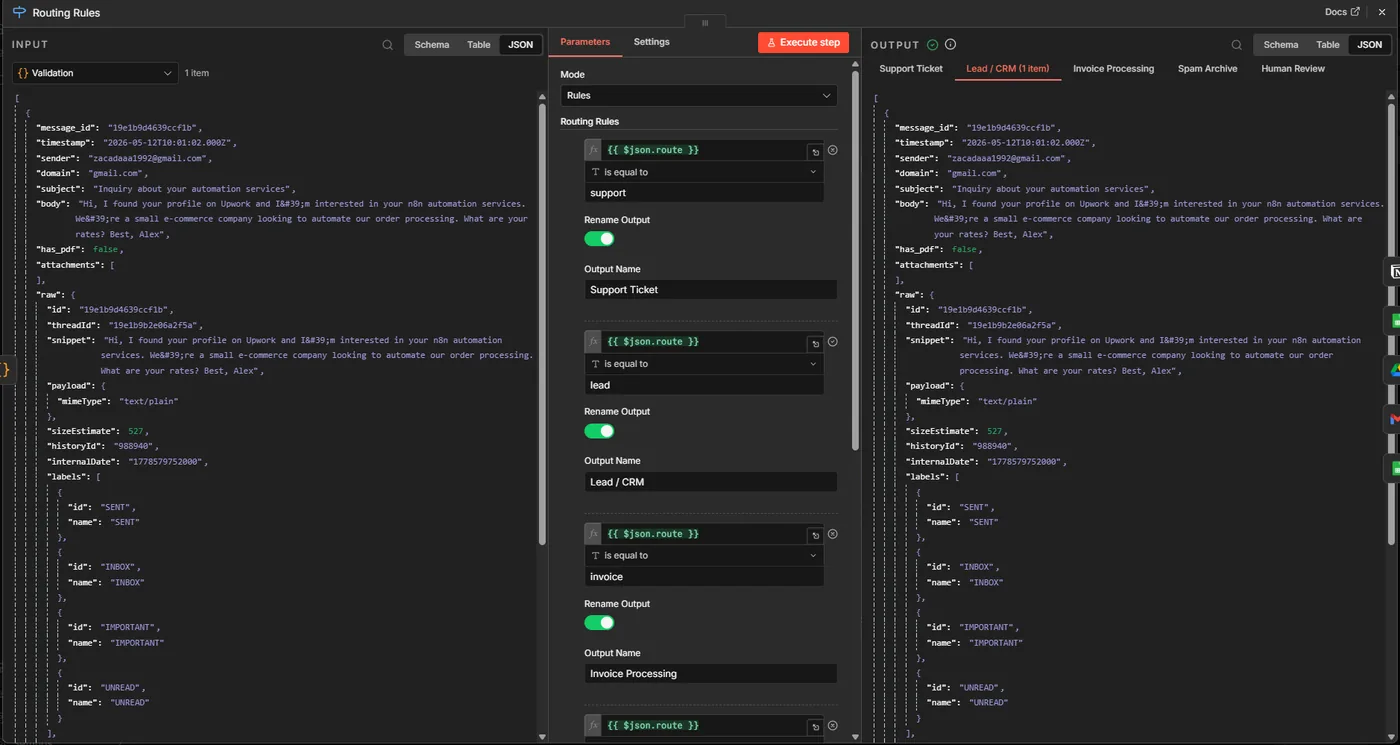

6. Route by validated route, not raw AI label
The router uses the validated route field. This keeps the Switch node simple: the safety decisions already happened in Validation.

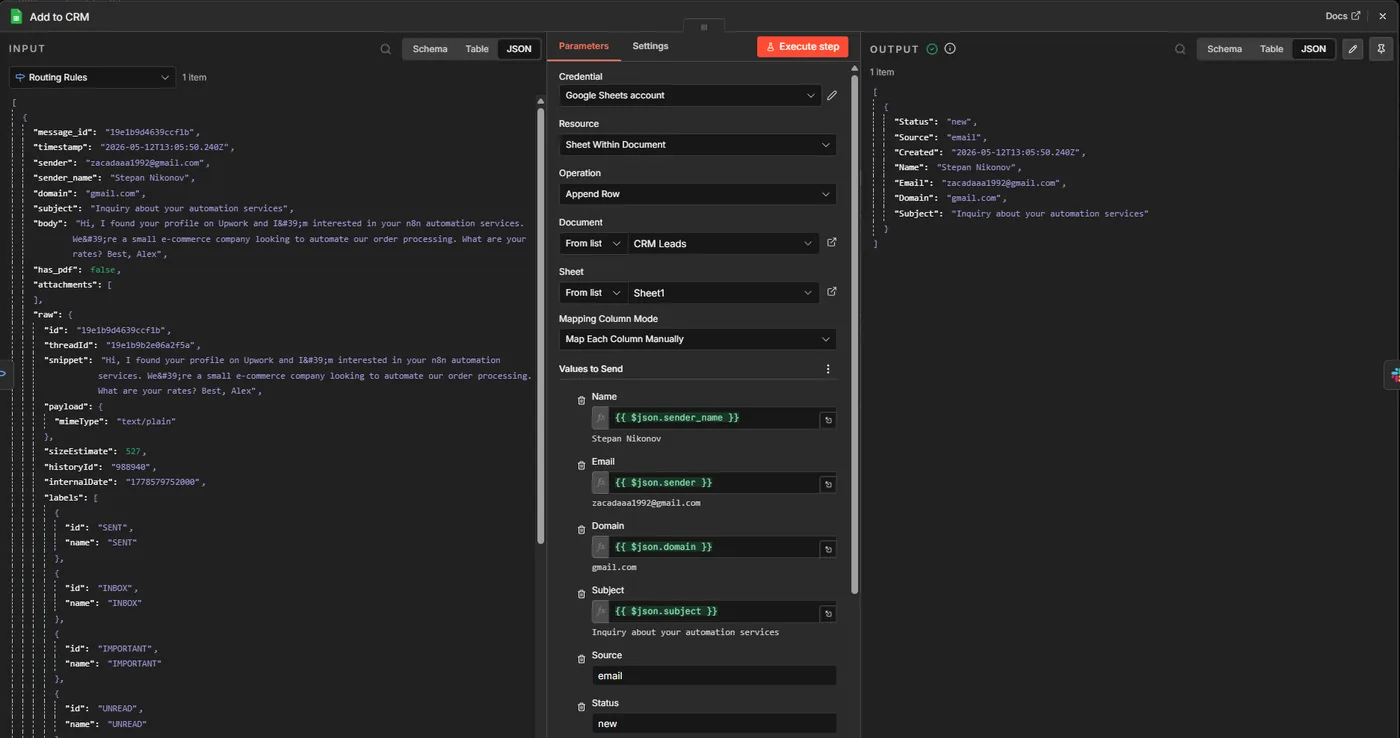

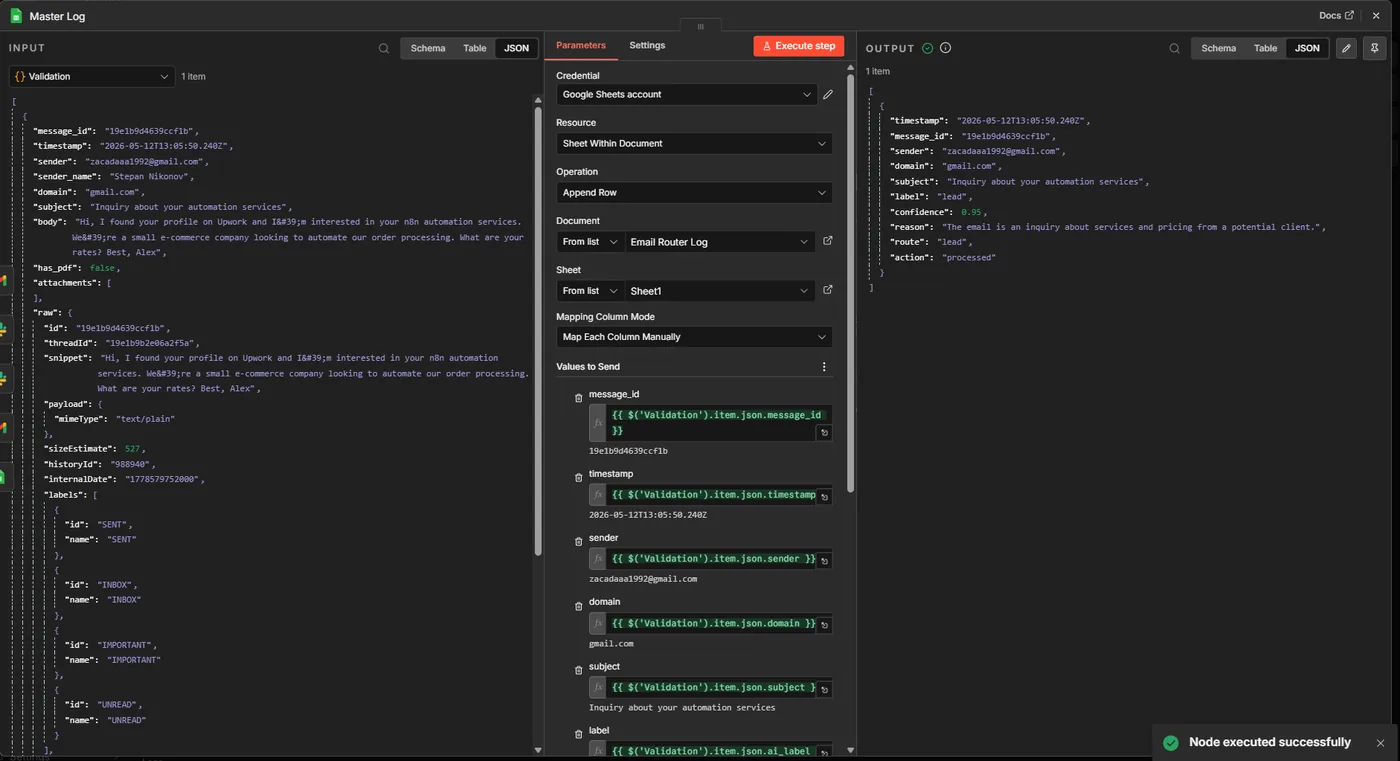

7. Lead path: CRM, Slack, and master log
The tested path for this demo is lead routing. The workflow writes a CRM row, posts a Slack alert, and then appends the operation to the master log.
Other branches use the same pattern
Fully testing every branch means preparing separate tables, statuses, dates, files, review rows, and sometimes real attachments. That setup work matters more than simply drawing lines between nodes.
Create a Notion or Airtable ticket, draft a reply, notify Slack, then log the completed route.
Save the PDF to Drive, add a row to an invoice sheet, notify admin, then log the route. If there is no PDF, send it to review.
Archive only when rule signals and confidence agree. Otherwise send it to review.
Add uncertain messages to a human review queue instead of forcing the workflow to guess.
What this demo does not cover
This is a useful first version, not the final production checklist. A production build would add an Error Trigger workflow, retry rules, stricter credential ownership, more test messages, and clearer handoff notes for the person who owns the inbox.
It would also test each branch with real examples: a support question, a real invoice PDF, a marketing email, a spam candidate, and at least one messy message that should go to review.
The setup pieces can be scaffolded too, such as a Drive folder, Sheets logs, a CRM sheet, and a Notion ticket database. I covered that pattern in the Claude connectors guide.
Adapt the routing policy
This is the kind of workflow automation Philippines teams can inspect: one trigger, clean fields, editable rules, a small AI classifier, validation before action, visible branches, Slack alerts, and a master log.
Define labels, review ownership, and allowed actions before adapting the workflow. Evaluate the classifier against independently labeled, privacy-safe messages separately from testing deterministic routing.
